The Burks GN Series General Purpose Centrifugal Pumps
are bearing frame mounted versuions of the standard
G series. They are constructed from the same liquid ends. Thus, performance
curves are the same.
Please reference the desired performance information by using the table
to the left.
|
|
|
|
| |
| |
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
oF
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|

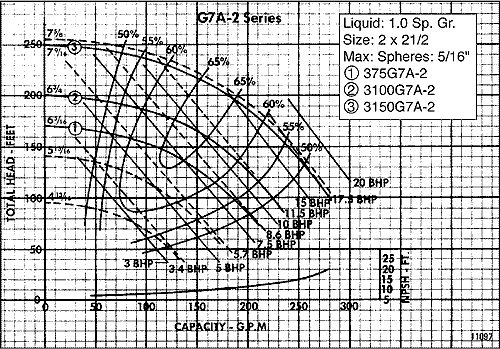

375G7A-2
|
210
|
100
|
270
|
1500
|
1.1
|
21/2" FPT
|
2" FPT
|
CI, BR, 3S, CB, CE, BN
|
71/2
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
142
|
13x15x20
|
| 3100G7A-2 |
235 |
120 |
200
|
1500
|
1.1
|
21/2" FPT
|
2" FPT
|
CI, BR, 3S, CB, CE, BN
|
10
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
185
|
14x17x22
|
| 3150G7A-2 |
280 |
250 |
225
|
1500
|
1.1
|
21/2" FPT
|
2" FPT
|
CI, BR, 3S, CB, CE, BN
|
15
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
200
|
14x17x23
|

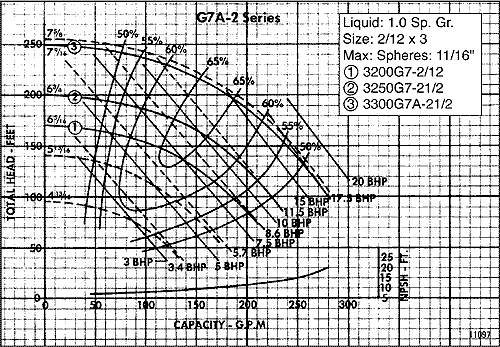

| 3200G7A-21/2 |
495 |
190 |
225
|
1500
|
1.1
|
3" FPT
|
21/2" FPT
|
CI, BR, 3S, CB, CE, BN
|
5
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
130
|
16x18x27
|
| 3250G7A-21/2 |
528 |
230 |
225
|
1500
|
1.1
|
3" FPT
|
21/2" FPT
|
CI, BR, 3S, CB, CE, BN
|
71/2
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
149
|
16x18x28
|
| 3300G7A-21/2 |
544 |
243 |
225
|
1500
|
1.1
|
3" FPT
|
21/2" FPT
|
CI, BR, 3S, CB, CE, BN
|
10
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
176
|
17x20x28
|
|
Other seal configurations available for temperatures
up to 500 °F.
* Contact a Water Cooling Engineer for assistance in selecting pumps for
fluids over 500 SSU
** All Iron and Bronze construction also available.
See page 5 for material legend.
|
Contact a Water Cooling Engineer for assistance
in selecting pumps for fluids over 1.1.
Specific gravity
TEFC and Explosion Proof motors available on special order. |
|
