Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
oF
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|

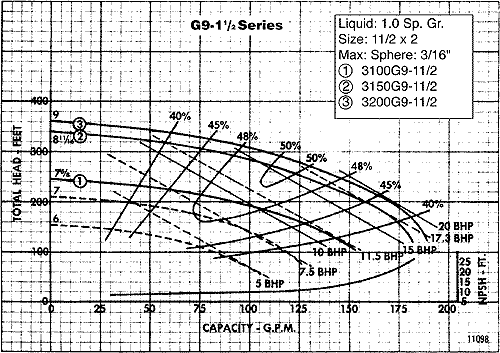

| 3100G9-11/2 |
152
|
245
|
225
|
1500
|
1.1
|
2" FPT
|
11/2" FPT
|
CI, BR, 3S, CB, CE, BN
|
10
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
191
|
15x17x21
|
3150G9-1-1/2
|
182
|
340
|
225
|
1500
|
1.1
|
2" FPT
|
11/2" FPT
|
CI, BR, 3S, CB, CE, BN
|
15
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
227
|
15x17x22
|
| 3200G9-1-/12 |
190
|
360
|
225
|
1500
|
1.1
|
2" FPT
|
11/2" FPT
|
CI, BR, 3S, CB, CE, BN
|
20
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
281
|
16x18x26
|

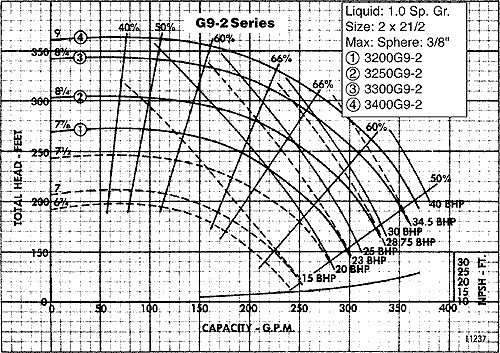

| 3200G9-2 |
300
|
270
|
225
|
1500
|
1.1
|
21/2" FPT
|
2" FPT
|
CI, BR, 3S, CB, CE, BN
|
20
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
305
|
16x18x27
|
| 3250G9-2 |
330
|
300
|
225
|
1500
|
1.1
|
21/2" FPT
|
2" FPT
|
CI, BR, 3S, CB, CE, BN
|
25
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
331
|
16x18x29
|
| 3300G9-2 |
360
|
340
|
225
|
1500
|
1.1
|
21/2" FPT
|
2" FPT
|
CI, BR, 3S, CB, CE, BN
|
30
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
403
|
17x20x29
|
| 3400G9-2 |
370
|
360
|
225
|
1500
|
1.1
|
21/2" FPT
|
2" FPT
|
CI, BR, 3S, CB, CE, BN
|
40
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
473
|
17x20x31
|
|
Other seal configurations available for temperatures
up to 500 °F.
* Contact a Water Cooling Engineer for assistance in selecting pumps for
fluids over 500 SSU
** All Iron and Bronze construction also available.
See page 5 for material legend.
|
Contact a Water Cooling Engineer for assistance
in selecting pumps for fluids over 1.1.
Specific gravity
TEFC and Explosion Proof motors available on special order. |
|
