Double Diaphragm Air-Operated Non-Metallic Pumps

Adhesives - glue handling.

Carpet/Textile - handling of carpet backing components and sizing.

Corrugated Production - adhesive handling.

Oil, Gas and Water Well Drilling - grout pumping, equipment cleaning, drum transfer.

Printing - transfer and agitation of inks and fountain solutions.

Brewing - hops transfer and yeast slurries.

Car Wash Systems - transfer of cleaning fluids.

Photography - fixer and other solutions.

Paint - transfer of latex paints.

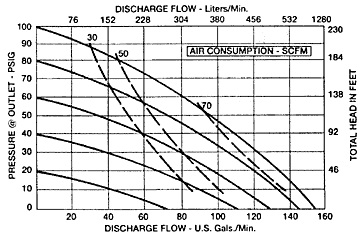

Performance Curve
(Based on water-flooded suction)

Plating - drum transfer, agitation and filtering.

Food - caustic cleaning solutions.

Metals - pumping pickling solutions.

Electronics - transfer of deionized water.

Nuclear - descaling fluid and pickling liquor.

Waste Treatment - sewage sludge, rinse water, drum transfer, chemical feed.

Caution: Chlorinated compounds, hydrocarbons and organic solvents will attack polypropylene and should not be used with the BK Series.

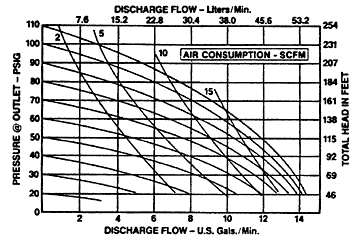

Performance Curve
(Based on water-flooded suction)

Paints - transfer, agitation and atomization of solvent-based paints and lacquers.

Printing - transfer of solvents and solvent-based inks.

Foundries - resin pumping and fluid transfer.

Dry Cleaning - handling cleaning fluids.

Electronics - transfer of pc board die lubricants.

Caution: strong acids and bases and phenols will attack
or dissolve nylon.

organic and inorganic chemicals at temperatures up to 200OF (93OC). Maximum air pressure for Model KN-10 is 70 psi. Applications are specialized and are most often found in industries such as chemical processing, planting and similar situations requiring superior resistance to harsh chemicals at elevated temperatures. Since there is no glass reinforcement, this pump is ideal for ultra-pure applications.

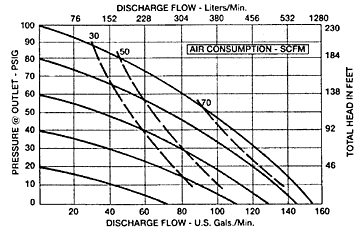

Performance Curve
(Based on water-flooded suction)
