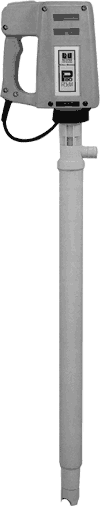

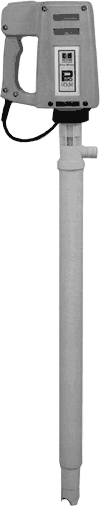

Designed to empty corrosive liquids from 55 gallon drums,
barrels, tanks, vats and other containers
• Sealless construction for trouble-free performance.
• Corrosive liquid transfer to 35 GPM/39 TDH.
• Limited run dry capability.
• Portable and Lightweight.
• Self Priming design.
•
30", 40", 50", 60” standard pump tube
lengths.
• Choice of high-power, double insulated 1150 watt electric
motor,
air motor or explosion proof motor. |
|
|
Temperature
Limits
320F. to 1300F.
(00C. to 550C.)
|
Temperature
Limits
00F. to 2500F.
(-180C. to 1210C.)
|
Temperature
Limits
320F. to 1300F.
(00C. to 550C.)
|
Polypropylene Construction
Economical and dependable
Wetted Parts Polypropylene, Hastelloy C®, Teflon®,
Viton®.
Typical Applications Hydrochloric acid, sulfuric acid,
nitric acid, most plating solutions, sodium hyroxide, alkaline
solutions, chromic acid. |
Kynar Construction
Corrosion resistance superior to Polypropylene Wetted Parts
Kynar, Hastelloy C®, Teflon®, Viton®. Typical
Applications Strong mineral and oxidizing acids, alkalies,
metal etchants, chlorine, aqueous caustic, organic solvents. |
Stainless Steel Construction
Heavy duty design for extended life. Wetted Parts
Stainless Steel, Teflon®,
Typical Applications
Alkalies, aqueous caustic,
light oils, and solvents. |
|
|
|
AIR
DRIVE - 100 PSI @ 18 CFM. With inlet
air valve for motor speed and flow control, and muffler
for quiet operation. Net weight: 2 lbs., Shipping Weight:
5 lbs.
ELECTRIC - 115V, 50/60Hz, 1 ph, ODP, double- insulated
with 15 feet of line cord, plug and on-off switch with
builtin safety manual reset circuit breaker. Motor cannot
accidentally restart after breaker trips. Switch must be
turned off to reset breaker. Net Weight: 7 lbs. Shipping
Weight: 9 lbs.
ELECTRIC - 230V, 50/60Hz,
1 ph, ODP, as per above, plug is not provided. EXPLOSION
PROOF ALSO AVAILABLE |
|
PUMP SPECIFICATIONS" |
POLYPROPYLENE |
KYNAR |
STAINLESS STEEL |
MODEL |
P90H-30 |
P90H-40 |
P90H-50 |
P90H-30K |
P90H-40K |
P90H-50K |
P90S-40S |
Tube Length* |
30" |
40" |
50" |
30" |
40" |
50" |
40" |
Wetted Materials |
Polypropylene, Teflont,
Hastelloy C®, Viton® |
Kynar®, Teflon®, Hastelloy
C®, Viton® |
SS-316, Kynar®, Teflon® |
Tube Diameter (at widest point) |
1-2/3" O.D. |
1-2/3" O.D. |
1-3/4" O.D. |
Discharge hose size |
1" I.D. |
1" I.D. |
Both 3/4" FNPT & 11/4" O.D.
Hose Adapter |
Maximum Flow** (water at 700F) |
35 GPM |
35 GPM |
37 GPM |
Maximum Head**
(water
at 700F) |
39 ft. |
39 ft. |
35 ft. |
Maximum Specific Gravity•• (reduced flow and pressure) |
1.86 |
1.86 |
1.86 |
Maxium Viscosity** (reduced flow and pressure) |
4000SSU (850 cks) |
4000 SSU (850 cks) |
4000 SSU (850 cks) |
Net Weight (lbs.) |
2 |
2/1/02 |
3 |
3 |
3/1/02 |
40 |
8 |
Shipping w/ Hose (lbs.) |
6/1/02 |
7 |
7/1/02 |
- |
- |
- |
- |
Weight w/o Hose (lbs.) |
4/1/02 |
5 |
5/1/02 |
5/1/02 |
6 |
6/1/02 |
10/1/02 |
|
* For other lengths consult factory.
** With electric motor drive. |
t Available with Nylon in place of Teflon for nuclear service.
tt Fits all standard 2" or larger drum openings. |
|
|
