Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|

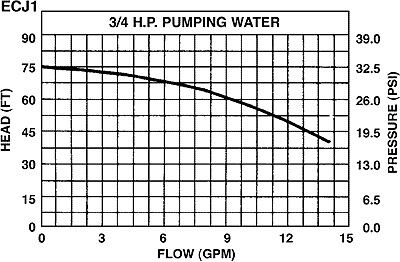

ECJ1-ASACCYSS
|
20
|
75
|
250
|
500
|
1.1
|
1/2" FPT
|
1/2" FPT
|
6S, CB, TF, VT, CE
|
3/4
|
3450
|
115/230
|
1
|
60
|
TEFC
|
41
|
19 X 8 X 7
|
|
ECJ1-ASACCYSS
|
20
|
75
|
250
|
500
|
1.1
|
1/2" FPT
|
1/2" FPT
|
6S, CB, TF, VT,CE
|
3/4
|
3450
|
230/460
|
3
|
60
|
TEFC
|
41
|
19 X 8 X 7
|
|

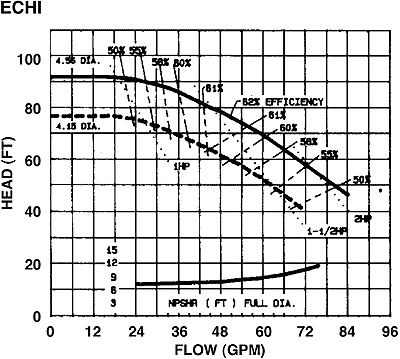

ECH1-ASAFEYSS
|
94
|
93
|
250
|
500
|
1.1
|
1 1/2" FPT
|
1 " FPT
|
6S, CB, TF, VT,CE
|
2
|
3450
|
230/460
|
3
|
60
|
TEFC
|
69
|
19 X 9 X 10
|
| Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
