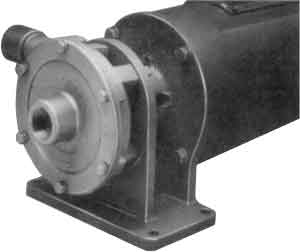

EASTERN Centrichem Centrifugal Pumps
are designed for
general industrial, OEM, and chemical processing
applications where 316 SS Alloy C construction is
required. These units are available with single, double, type
21 and type 9 mechanical seals in a wide variety of materials.
A power frame assembly is available for pedestal mounting
the C and H series. These pumps are ideal for use in
process, pilot plant, and laboratory applications.
|
• Available in
316SS and Alloy C (Models C and H only)
Construction - Handles wide variety
of corrosive
chemicals
• Closed Coupled Design – Compact,
requires less space
• Standard NEMA C-Flange Motors - Allows
for wide range
of drives including explosion proof and air motors
• Semi-Open Impeller Design (model d, c
and J only) –
Minimizes potential clogging
• Standard Mechanical Seals –
Handles wide range of
application requirements (i.e., corrosive, high
temperatures, and abrasives)
|
|
|
|
|
|
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
ECD1-ASAAAYSS
|
6.5
|
46
|
250
|
500
|
1.1
|
1/4" FPT
|
1/4" FPT
|
6S, CB, TF, VT, CE
|
1/3
|
3450
|
115/230
|
1
|
60
|
TEFC
|
30
|
16 X 6 X 6
|
|
ECD1-ASACAYSS
|
9
|
50
|
250
|
500
|
1.1
|
1/2" FPT
|
1/4" FPT
|
6S, CB, TF, VT,CE
|
1/3
|
3450
|
115/230
|
1
|
60
|
TEFC
|
30
|
16 X 6 X 6
|
|
ECD1-ASACGYSS
|
20
|
50
|
250
|
500
|
1.1
|
1/2" FPT
|
3/8" FPT
|
6S, CB, TF, VT,CE
|
1/2
|
3450
|
115/230
|
1
|
60
|
TEFC
|
34
|
16 X 6 X 6
|
|
ECD1-ASACGYSS
|
20
|
50
|
250
|
500
|
1.1
|
1/2" FPT
|
3/8" FPT
|
6S, CB, TF, VT,CE
|
1/2
|
3450
|
230/460
|
3
|
60
|
TEFC
|
29
|
16 X 6 X 6
|
|
ECC1-ASAEDYSS
|
54
|
72
|
250
|
500
|
1.1
|
1" FPT
|
3/4" FPT
|
6S, CB, TF, VT,CE
|
1
|
3450
|
115/230
|
1
|
60
|
TEFC
|
64
|
19 X 8 X 8
|
|
ECC1-ASAEDYSS
|
54
|
72
|
250
|
500
|
1.1
|
1" FPT
|
3/4" FPT
|
6S, CB, TF, VT,CE
|
1
|
3450
|
230/460
|
3
|
60
|
TEFC
|
53
|
19 X 8 X 8
|
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
