Conical Closed Head
Bulk Storage Cone Bottom Tanks.
CBT Series
• Choice of 30 or 45 Degree Cone
Slope.
• Splash Guards with stands complete the system.
• Materials of Construction:
Linear Polyethylene-Standard 1.5 Specific Gravity.
Cross Linked Polyethylene Available-Consult Factory

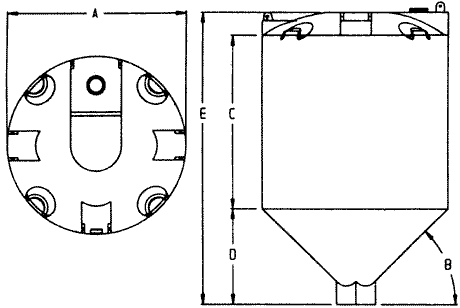

MODEL**
GALLONS
A
DIAMETER
B
CONE
DEGREE
C
CYLINDER
HEIGHT
D
CONE
HEIGHT
E
OVERALL
HEIGHT
MANWAY/
FILL
DIAMETER
5070
2,000
90"
30
631/2"
30"
104"
18"
5110
2,500
90"
30
83"
30"
1233/4"
18"
5100
2,600
90"
45
85"
47"
1425/8"
18"
5150
3,000
90"
30
1021/2"
30"
143"
18"
5440
3,900
90"
30
1383/4"
30"
1791/4"
18"
5180
4,100
90"
45
140"
47"
1981/2"
18"
5200
4,400
90"
30
158"
30"
1981/2"
18"
7040
5,500
90"
30
1951/2"
30"
236"
18"
7060
5,600
142"
45
1973/4"
47"
2461/4"
18"
5280
6,000
90"
30
781/2"
30"
1341/2"
18"
7180
6,500
142"
30
2341/2"
30"
275"
18"
7300
7,400
142"
30
981/2"
30"
1541/2"
18"
5340
11,500
142"
30
157"
40"
213"
18"
**Model
Numbers-When ordering a Watco tank, you will note a
three (3)-or four (4)-digit part number listed for each tank
size. This number identifies the product (i.e. size). Certain
codes are used as suffixes to this basic part number, to identify
material type and specific gravity.
