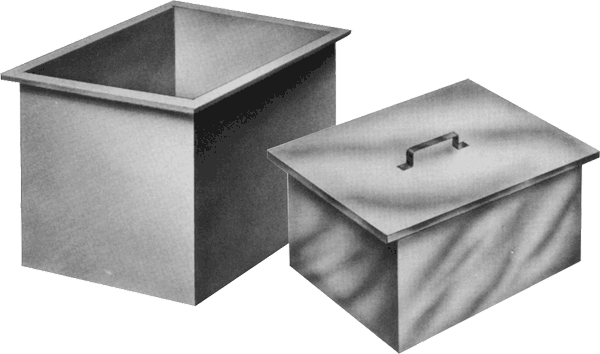

Rectangular Tanks
For Storage
Standard Specifications

• Material: Type 304 stainless steel. Option: Type 316 stainless steel.
• Construction: Square corner, open top, flat bottom style. Option: Sanitary radius corner.
• Cover: One piece removeable style, hinged, bolted with gasket as per specification.
• Outlet: Sanitary ferrule; NPT half coupling; 150# flange. *Outlet diameter and type of outlet per specification. A wide range of fittings, flanges, and valves are available.
• Legs: Optional, steel angle or pipe as per specifications.
• Supports: Additional stiffeners and bottom supports added as required.Rectangular tanks are self supporting up to a specific gravity of 1.
• Finish: 2B finish stainless steel. Weld seams wire brushed inside and out. Option: #4 polish.

(Fittings Page 54)

L x W
(INCHES)

L x W
(INCHES)
L x W
(INCHES)
L x W
(INCHES)
L x W
(INCHES)
L x W
(INCHES)
L x W
(INCHES)
L x W
(INCHES)
12 x 15
15 x 15
18 x 18
24 x 24
30 x 30
36 x 36
42 x 42
48 x 48
12 x 18
15 x 18
18 x 24
24 x 30
30 x 36
36 x 42
42 x 48
48 x 54
12 x 24
15 x 24
18 x 30
24 x 36
30 x 42
36 x 48
42 x 54
48 x 60
12 x 30
15 x 30
18 x 36
24 x 42
30 x 48
36 x 54
42 x 60
48 x 66
12 x 36
15 x 36
18 x 42
24 x 48
30 x 54
36 x 60
42 x 66
48 x 72
12 x 42
15 x 42
18 x 48
24 x 54
30 x 60
36 x 66
42 x 72

12 x 48
15 x 48
18 x 54
24 x 60
30 x 66
36 x 72
12 x 54
15 x 54
18 x 60
24 x 66
30 x 72
12 x 60
15 x 60
18 x 66
24 x 72
12 x 66
15 x 66
18 x 72

12 x 72
15 x 72

ALL TANKS ABOVE AVAILABLE IN ANY OF THESE DEPTHS (INCHES): 12, 15, 18, 24, 30, 36, 42, 48, 54, 60, 66, 72.
Additional sizes available on request. Call 718-528-4000
