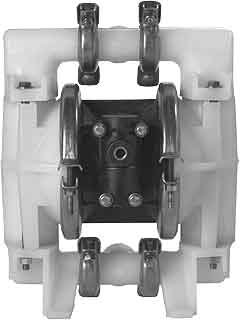

Plastic Models:
NC-10 (Polypropylene/Geolast*) 19 lbs. (8,6 kg.)
BK-10 (Polypropylene/Teflon) 19 lbs. (8,6 kg.)
RD-10 (Nylon/Teflon) 19 lbs. (8,6 kg.)
SL-10 (Acetal/Geolast) 19 lbs. (8,6 kg.)
KN-10 (PVDF/Teflon) 22 lbs. (9,9 kg.)

Metallic Models:
ST-10 (Stainless Steel) 42 lbs. (19,1 kg.)
AL-10 (Aluminum) 19 lbs. (8,6 kg.)
Optional elastomers available.
* Geolast properties are similar to that of Nitrile (Buna-N)

Specifications:

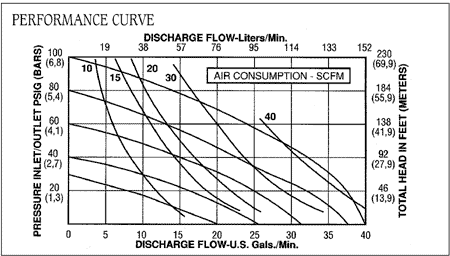

Capacity:
Adjustable............0 to 40 GPM (152 liters/min.)
Maximum Temperature:
KN-10 Model................................200°F (93°C)
Other Plastic Models......................150°F (66°C)
Metallic Models.............................200°F (93°C)
Maximum Air Pressure:
KN-10 Model..........................70 PSI (4,8 bars)
Other Models........................100 PSI (6,8 bars)
Minimum Air Pressure:
All Models...............................20 PSI (1,2 bars)
Dry Lift Capacity @ 100 PSI (6,8 bars):
Models w/Teflon Balls................10 ft. (3 meters)
Other Models.........................15 ft. (4,5 meters)
Maximum Solids:.......................1ž4” or (6,4 mm)
Air Supply:
Inlet........................................1ž4” NPT Female
Outlet......................................3ž4” NPT Female
(Air flow control valve, 1/4” NPT or 1/2” BSP Female)
Fluid Inlet/Discharge:................................1” NPT

Footnotes:
• Muffler supplied with each pump
• Air flow control valve supplied with each pump
• Dual manifold inlet/outlet capability –
Plastic models only
• BSP threads available upon request
