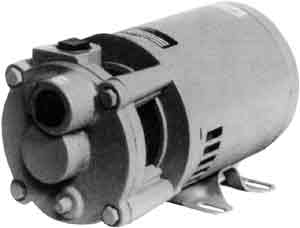

MTH Regenerative Turbine Pumps are designed
for general industrial, commercial and OEM applications where a low
flow, high head, compact pump is required. The 040 and 050 Series pumps
are offered as single stage, while the 140 and 150 Series pumps are
available in one, two, three and four stage configurations. The regenerative
design provides long life and
low maintenance service on applications such as boiler feed, jockey
pumps, condensate return and chemical processing.
Low NPSH requirements Allows
pumps to be used for high
temperature and other difficult applications
Close Coupled Design Compact,
requires less space
Available in Bronze Fitted. All Iron
and 316 Stainless Steel
Construction Handles a wide variety of clear, low viscosity
fluids
Utilizes Standard Mechanical Seal Assemblies
Simplifies maintenance and allows handling of aggressive chemicals
Optional Inducer (140 abd 150 Series
only) Reduces NPSH
Requirements to allow increased capacity in difficult applications
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Tank
Size
Gals.
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
041A J19
|
6
|
140
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1/2
|
3500
|
115/230
|
1
|
60
|
ODP
|
38
|
7 x 7 x 16
|
041A J57
|
6
|
140
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1/2
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
38
|
7 x 7 x 16
|
041A M19
|
6
|
280
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
3/4
|
3500
|
115/230
|
1
|
60
|
ODP
|
42
|
7 x 7 x 16
|
041A M57
|
6
|
280
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
3/4
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
42
|
7 x 7 x 16
|
041A N19
|
6
|
335
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1
|
3500
|
115/230
|
1
|
60
|
ODP
|
57
|
7 x 7 x 16
|
041A N57
|
6
|
335
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
57
|
7 x 7 x 16
|
041B J19
|
8
|
120
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1/2
|
3500
|
115/230
|
1
|
60
|
ODP
|
38
|
7 x 7 x 16
|
041B J57
|
8
|
120
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1/2
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
38
|
7 x 7 x 16
|
041B M19
|
8
|
250
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
3/4
|
3500
|
115/230
|
1
|
60
|
ODP
|
42
|
7 x 7 x 16
|
041B M57
|
8
|
250
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
3/4
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
42
|
7 x 7 x 16
|
041B N19
|
8
|
400
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1
|
3500
|
115/230
|
1
|
60
|
ODP
|
57
|
7 x 7 x 16
|
041B N57
|
8
|
400
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
57
|
7 x 7 x 16
|
041C M19
|
10.2
|
140
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
3/4
|
3500
|
115/230
|
1
|
60
|
ODP
|
42
|
7 x 7 x 16
|
041C M57
|
10.2
|
140
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
3/4
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
42
|
7 x 7 x 16
|
041C N19
|
10.2
|
245
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1
|
3500
|
115/230
|
1
|
60
|
ODP
|
57
|
7 x 7 x 16
|
041C N57
|
10.2
|
245
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
57
|
7 x 7 x 16
|
041C T19
|
10.2
|
400
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1 1/2
|
3500
|
115/230
|
1
|
60
|
ODP
|
62
|
7 x 7 x 16
|
041C T57
|
10.2
|
400
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1 1/2
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
62
|
7 x 7 x 16
|
041D N19
|
12.6
|
180
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1
|
3500
|
115/230
|
1
|
60
|
ODP
|
57
|
7 x 7 x 16
|
041D N57
|
12.6
|
180
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
57
|
7 x 7 x 16
|
041D T19
|
12.6
|
345
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1 1/2
|
3500
|
115/230
|
1
|
60
|
ODP
|
62
|
7 x 7 x 16
|
041D T57
|
12.6
|
345
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
1 1/2
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
62
|
7 x 7 x 16
|
041D W19
|
12.6
|
400
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
2
|
3500
|
115/230
|
1
|
60
|
ODP
|
66
|
7 x 7 x 16
|
041D W57
|
12.6
|
400
|
212
|
100
|
1.2
|
1" FPT
|
1" FPT
|
CI, BR, 3S, BN, CB, CE
|
2
|
3500
|
208/230/460
|
3
|
60
|
ODP
|
66
|
7 x 7 x 16
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
