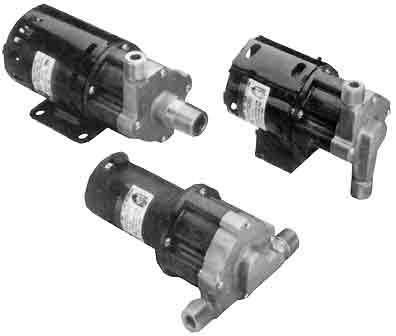

MARCH Hydronic Circulating Pumps with seal-less magnetic
drive offer the ultimate in reliability for commercial , industrial and
domestic hot water systems. Standard Bronze fitted
construction is also available with a 316 Stainless Steel or Polysulfil
plastic housing. These pumps are also ideal for
circulating heat transfer liquids.
|
• Magnetic Coupling
- Provides overload protection
• Seal-less, Magnetic Drive Design
- Eliminates leakage and maintenance due to mechanical seals and
packing
• UL Listed motor (series 809 Only) - Assures high Quality
• In-Line and Center Inlet Configurations
- Allows flexibility
in system piping
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Tank
Size
Gals.
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
809-BR
|
3.1
|
4.1
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/100
|
1700
|
115
|
1
|
60
|
AC
|
5
|
4 x 5 x 7
|
|
809-PL
|
3.1
|
4.1
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
PL, 6S, SI, RY
|
1/100
|
1700
|
115
|
1
|
60
|
AC
|
4
|
4 x 5 x 7
|
|
809-BR-C
|
3.1
|
4.1
|
250
|
100
|
1.1
|
3/4" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/100
|
1700
|
115
|
1
|
60
|
AC
|
6
|
4 x 5 x 9
|
|
809-BR-BB
|
3.1
|
4.1
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/100
|
1700
|
115
|
1
|
60
|
AC
|
5
|
4 x 5 x 7
|
|
809-BR-24
|
3.1
|
4.1
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/100
|
1700
|
24
|
-
|
DC
|
AC
|
5
|
4 x 5 x 7
|
|
809-BR-12
|
3.5
|
5.5
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/100
|
1900
|
12
|
-
|
BC
|
AC
|
4.4
|
4 x 5 x 7
|
|
809-BR-HS
|
5.3
|
11.6
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
5.5
|
4 x 5 x 8
|
|
809-PL-HS
|
5.3
|
11.6
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
5
|
4 x 5 x 8
|
|
809-BR-HS-C
|
5.3
|
11.6
|
250
|
100
|
1.1
|
3/4" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
6.5
|
4 x 5 x 9
|
|
809-BR-HS-BB
|
5.3
|
11.6
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
5.5
|
4 x 5 x 8
|
|
809-BR-HS-BB-C
|
5.3
|
11.6
|
250
|
100
|
1.1
|
3/4" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
6.5
|
4 x 5 x 9
|
|
809-BR-HS-12
|
5.5
|
15
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/35
|
3600
|
12
|
-
|
DC
|
AC
|
4.5
|
4 x 5 x 8
|
|
809-146-O1-C
|
4.8
|
9.3
|
250
|
100
|
1.1
|
3/4" MPT
|
1/2" MPT
|
BR, 6S, VT, RY
|
1/25
|
3050
|
115/230
|
1
|
60/50
|
TEFC
|
8
|
4 x 6 x 10
|
|
809-146-02-C
|
4.8
|
9.3
|
250
|
100
|
1.1
|
3/4" MPT
|
1/2" MPT
|
6S, VT, RY
|
1/25
|
3050
|
115/230
|
1
|
60/50
|
TEFC
|
8
|
4 x 6 x 10
|
|
815-BR
|
5.5
|
15
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S. SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
5.5
|
4 x 5 x 8
|
|
815-PL
|
5.5
|
15
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
PL, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
4.5
|
4 x 5 x 8
|
|
815-BR-C
|
5.5
|
15
|
250
|
100
|
1.1
|
3/4" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
6
|
4 x 5 x 9
|
|
815-BR-BB
|
5.5
|
15
|
250
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
5.5
|
4 x 5 x 8
|
|
815-BR-BB-C
|
5.5
|
15
|
250
|
100
|
1.1
|
3/4" MPT
|
1/2" MPT
|
BR, 6S, SI, RY
|
1/25
|
3400
|
115
|
1
|
60
|
AC
|
6
|
4 x 5 x 9
|
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
